Spar Mechatronics Co.,Ltd

บริษัทเป็นผู้ผลิตและจำหน่ายเครื่องจักร CNC Engarving/router/plasma/milling/lathe machine มาตั้งแต่ปี พศ. 2542 ผลิตเครื่องไปแล้วไม่น้อยกว่า 400 เครื่อง มีทั้งเครื่องขนาดเล็กพื้นที่ทำงานตั้งแต่ 300x300 มม. ไปจนถึง 1500x8000 มม. ทั้งแบบ 3 แกน 4 แกน และปัจจุบันกำลังพัฒนาเครื่องแบบ 5 แกนโดยการร่วมมือกับ สถาบันเทคโนโลยีแห่งเอเชีย (Asian Institute of Technology (AIT)) ซึ่งคาดว่าจะเสร็จในต้นปีพศ. 2552

เรามีทีมวิศวการที่มีความชำนาญมากว่า 10 ปี ทั้งการออกแบบ การบริการหลังการขาย (After sale service) และให้ตำปรึกษาเกี่ยวกับการออกแบบเครื่องจักร CNC เฉพาะงาน (Custom made CNC) ต่างๆให้เหมาะสมกับงานของท่าน

ท่านสามารถดูรูปเครื่องต่างๆของบริษัท ซึ่งทางบริษัทได้ผลิตออกมาอย่างยาวนาน เป็นรูปที่ไม่มีการตัดต่อ หรือตกแต่งใดๆทั้งสิ้น เพื่อเป็นการยืนยันว่า บริษัท สปาร์ แมคคาทรอนิคส์ จำกัด เป็นผู้นำทางด้าน CNC ของประเทศไทย อย่างแท้จริง ได้ที่ www.picasaweb.google.co.th/sparmec

วันอาทิตย์ที่ 13 กุมภาพันธ์ พ.ศ. 2554

การทำโมเด็ลรถขนาดเท่าจริงทั้งคันด้วยโฟม

เตรียมพบกับการทำโมเด็ลรถขนาดเท่าจริงด้วยโฟมครับ โดยมีต้นแบบขนาดเล็กนำมาสแกนแล้วขยายให้เท่าขนาดจริง

เราเริ่มต้นจากการนำโมเด็ลที่ต้องการมาทำการ Scan ครับ





เนื่องจากโมเด็ลรถยนต์เราต้องสแกนรอบตัว เราจึงทำการทำหมายเลขรอบตัวรถเพื่อทำการเชื่อมต่อหลังการสแกนแต่ละส่วนเสร็จแล้ว







รูปหลังการสแกนเสร็จแล้ว เราสามารถที่ใช้โปรแกรม CAD/CAM ทำการแก้ไขรูปทรง แบบ ขนาดตามที่เราต้องการ ในกรณีนี้เราจะทำการขยายให้ได้ขนาดเท่าจริงครับ
หลังจากนั้นเราจะทำการแบ่งรถออกเป็นส่วนย่อยๆ เพื่อทำการกัดบนโฟมด้วยเครื่อง CNC ต่อไป

การทำงานของเครื่อง CNC




หลังจากที่ใช้เครื่อง CNC ทำเสร็จแล้วก็จะนำมาประกอบแต่ละชิ้น









สอบถามรายละเอียดเพิ่มเติมได้ที่
สมภพ
sompob@spar.co.th
www.spar.co.th

วันศุกร์ที่ 11 กุมภาพันธ์ พ.ศ. 2554

CNC Router Machine ขนาดใหญ่สำหรับงานอะคลีลิค

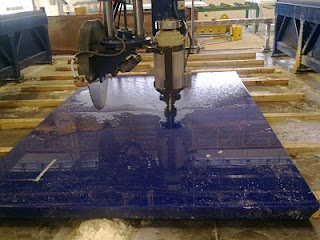

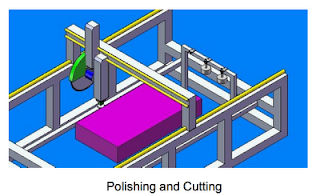

เครื่อง CNC Router รุ่นนี้เป็นเครื่องที่มีขนาด 3,000x7,000x900mm. ใหญ่ที่สุดที่เราเคยทำมา เป็นที่ใช้สำหรับ ตัดแผ่นอะคลีลิคด้วยใบเลื่อย (Saw blade) และมีหัวSpindle ขนาด 30KW ที่ใช้สำหรับ ปาดหน้า (Fine face) และขัด (Polishing) ซึ่งทางบริษัท RPT Asia จำกัด จังหวัดระยองผู้ผลิตแผ่นอะคลีลิคใส ที่มีความถึง 4" หรือ 100 mm. และเป็นบริษัทของประเทศสหรัฐอเมริกา โดยทาง RPT ได้ว่าจ้่างทางบริษัทเป็นผู้ผลิตเครื่องจักรนี้ ใช้เวลาในการทำประมาณ 4 เดือนจึงแล้วเสร็จ






คุณสมบัติของเครื่องจักร

MACHINE CONSTRUCTION

The machines are constructed of a rigid, fabricated steel base, utilizing heavy gauge steel tube and plate weldment construction throughout. All surfaces that mount precision components are precision machined. Machine Dimension is 3500X7500x1915 mm.


TABLE SIZE

Table is provided with 6 point vacuum holddown.

The Machine has a working area 3000x7000x900 mm


X-AXIS

The X-axis is the Bridge axis moves left and right

The bridge will span the 3,500 mm. dimension over the work zone

Actual travel X- axis is 3,000 mm.

Maximum Feed rate is 25,000 mm. per minute

Rexroth or equivalent linear guide 45 mm profiled ways with steel linear bearing blocks

The X-axis is driven by rack and pinion.


Y-AXIS

The Y-axis is the moving gantry axis and travels front to back

The Gantry will travel the 7500 mm. dimension

Actual travel Y-axis is 7000 mm.

Maximum Feed rate is 25000 mm per minute.

Rexroth linear guide 45 mm .

The Y-axis is driven by a Rack and Pinion assembly with Servo motors on each side of the gantry operating in a slave mode.


Z-AXIS

The Z-axis travel is 900 mm.

Clearance from the ground to the bottom of the bridge is 1500 mm.

Maximum Feed rate 15000 mm. per minute.

The Z-axis is driven by a recirculating ball nut, lead screw assembly. The lead screw spins and is supported on each end by angular contact bearings.


SPINDLE

30 hp Setco or equivalent spindle. The spindle speed is programmable from 0 to 8000 rpm. It uses a Cat 50 tool holder.


Blade Cutter

Blade Diameter : 900 mm.

Maximum Cutting Depth : 300 mm.

Blade Motor Power : Hydralic power motor 36KW

Blade speed : 1600 RPM


CONTROLLER

PC base controller (Mach3)


DRIVE SYSTEM

Panasonics AC servo motors and digital drives on all axis.


UTILITIES

Power requirements: 380 Volts, 3 Phase, 50 HZ, 80 Amps (Machine only)

Air requirements: 5 CFM at 95 PSI. Note: The tool changer spindle requires a minimum of 95 PSI to insure tool release. Additional air devices will change CFM requirements

Vacuum: This machine does not require vacuum and is not included in this quote

Dust collection: This machines does not use a dust collection and hood and no dust collector is included with the machine.
